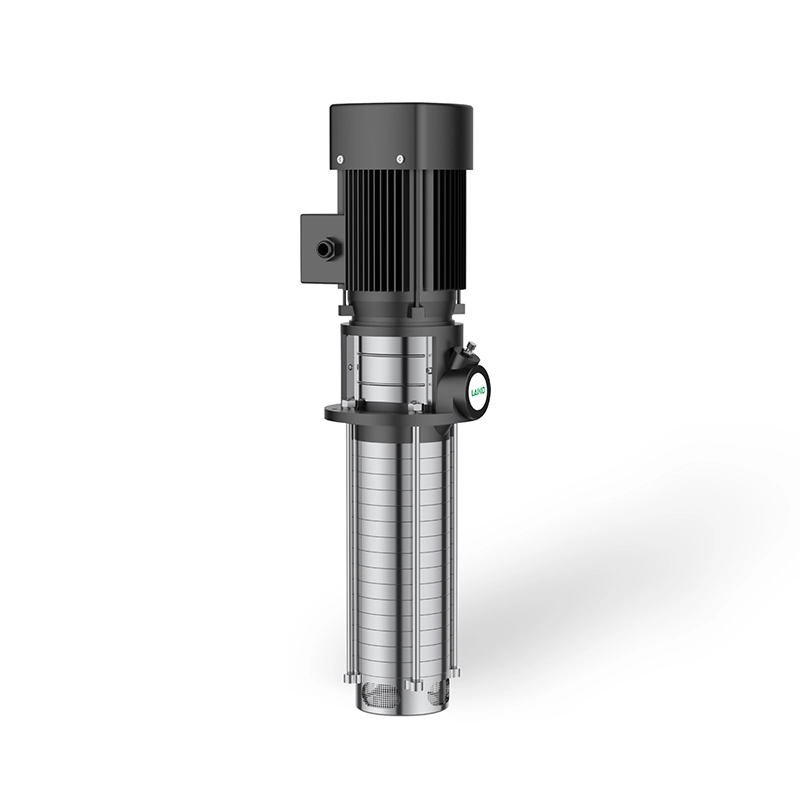

ALJ/ALJS a non-self-priming vertical multistage centrifugal pump designed for installation with a standard motor. The motor shaft is directly connected to the pump shaft through the pump head with a coupling. The pump can be equipped with an intelligent protector if needed, which effectively protects the against dry running, phase loss, overload and so on. To meet the installation depth of the water tank or container, an empty chamber can be installed to change the length of the pump itself. The motor is fully enclosed, air-cooled, two-pole standard motor.
Protection class: IP55
Insulation class: F
Voltage: 50Hz: 1x220-230/240V
3 x200/346
3x220-240/380-415V
3x220-255/380-440V
Other voltage motors are available on request.
Single-phase motors are available from 0.37 to 2.2kw. Thin, clean, non explosive liquid free of solid particles and
fibers,capable of transporting water,cooling water solutions, and cutting lubricants.
Liquid temperature: Room temperature type -15℃+70℃
